Miller®

PS 1 & PS 2 Series

Self-Adjusting Wire Strippers

Part No: Refer to Chart

Comparison Chart

Model Part No. Dimensions Weight Cutting Max. Cable Diameter Stripping Max. Cable Diameter

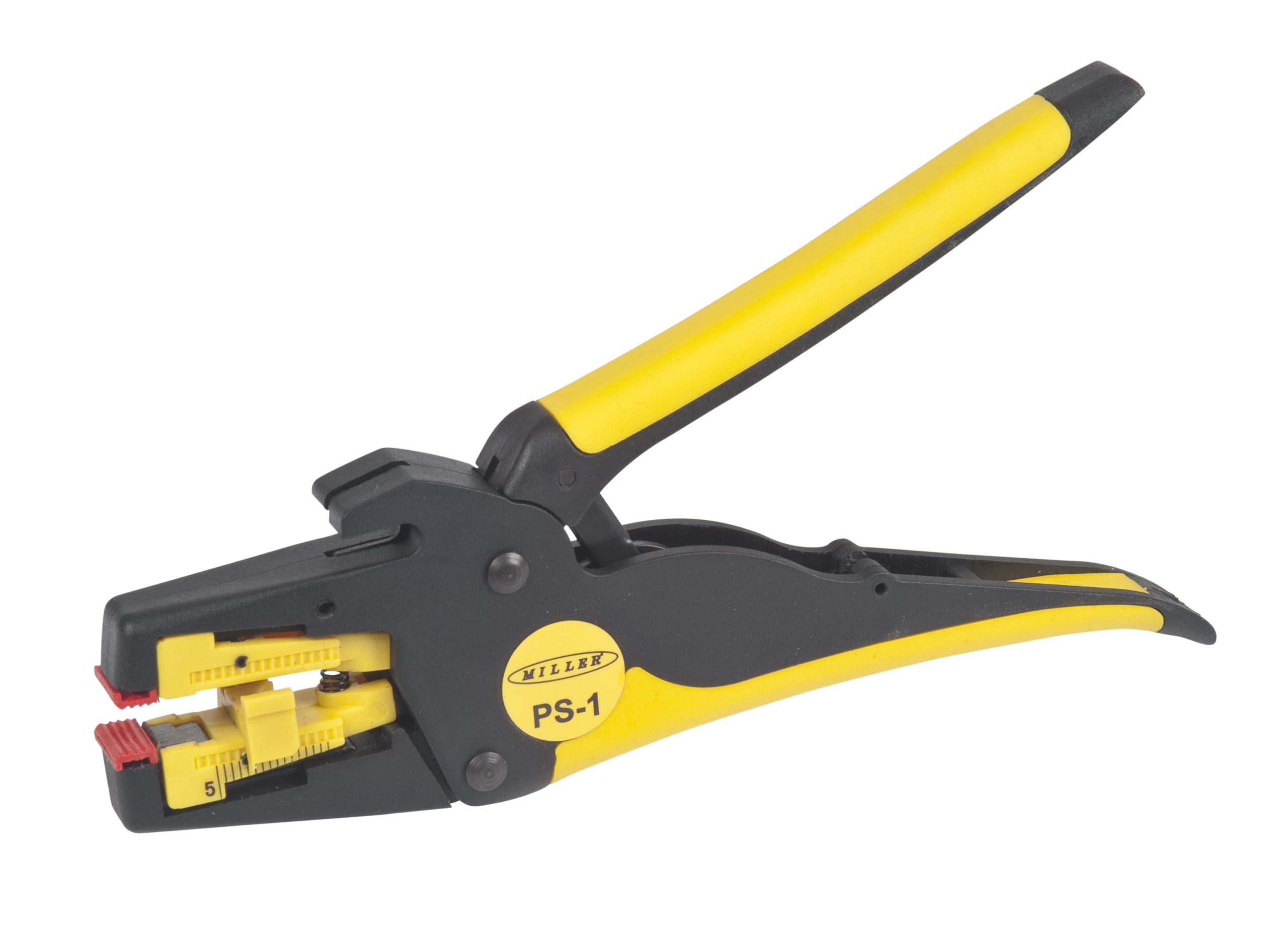

PS 1 39765
6.1″ x 3.1″ x 0.6″ (155 x 80 x 14 mm)
2.7 oz (76 g)
0.062″ (1.5 mm²); 34-16 AWG (Stranded); 34-14 AWG (Solid)
0.062″ (1.5 mm²); 34-16 AWG (Stranded); 34-14 AWG (Solid)

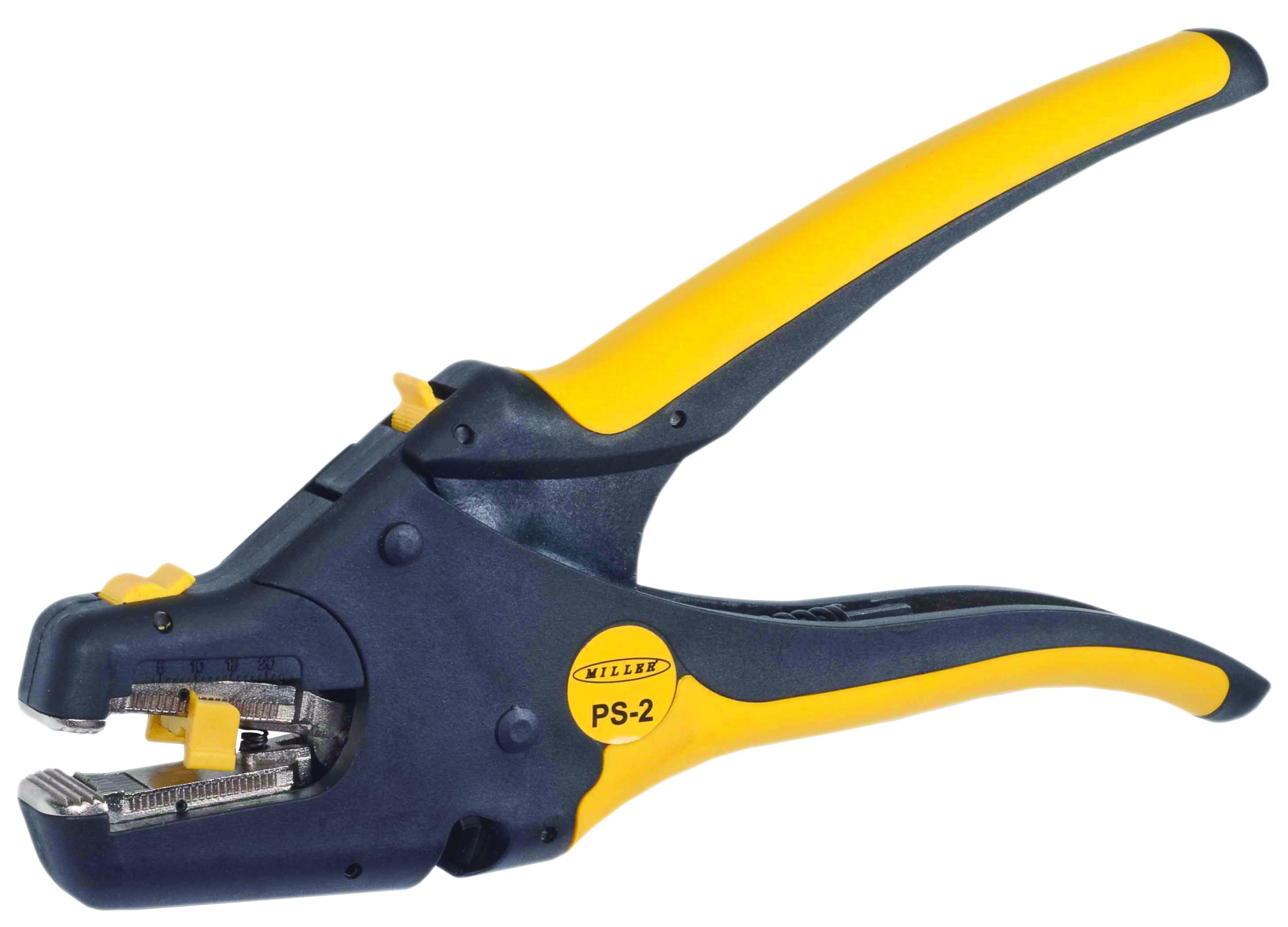

PS 2 39780
7.1″ x 2.8″ x 0.7″ (180 x 70 x 18 mm)
5.3 oz (150 g)
0.126″ (6 mm² Stranded Copper); 22-10 AWG (Stranded/Solid)
0.126″ (0.08 - 6 mm²); 22-10 AWG (Stranded/Solid)
