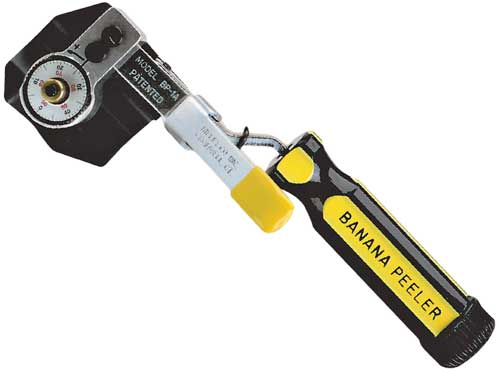

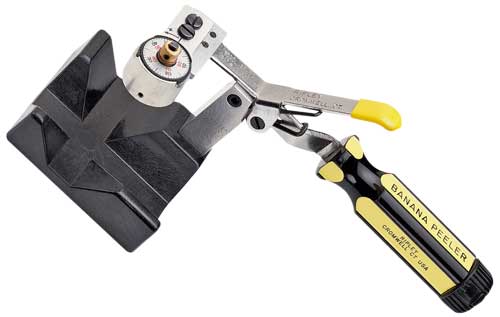

Banana Peeler – BP Series

Adjustable 5-35 kV Cable Semi-Con Scoring Tool

Designed for consistent and accurate scoring depths.

See all distributors

Part No: Refer to Chart

Share this product

Downloads

Overview

  • Adjustable blade depth to easily score the semi-con without damage to underlying insulation
  • Single-handed cable circumference & length scoring
  • Equipped with a Teflon-coated cable guide & spring-loaded blade assembly to ensure consistent & accurate scoring depths

Compatibility

Cable Compatibility Primary Distribution Underground
Cutting Type Spiral, Longitudinal

Specifications

Cable Access End
Min. Voltage 5 kV
Max. Voltage 35 kV
Shaves Semi-Con Yes
Length 9.4″ (239 mm)
Weight 13 oz (369 g)
Replacement Blade Part # 34230

Comparison Chart

MODEL PART # GTIN SCALE ADJUSTABLE BLADE DEPTH SEMI-CON DIAMETER APPLICATION
BP 1AH 34190 Customary 1 - 90 mils 1.10″ - 1.30″ (27.94 - 33.02 mm) Semi-Con Removal
BP 1A 34244 856848006182 Customary 1 - 90 mils 0.75″ - 1.10″ (19.05 - 27.94 mm) Semi-Con Removal
BP 2A 34245 Customary 1 - 90 mils 1.25″ - 1.75″ (31.75 - 44.45 mm) Semi-Con Removal
BP 2AH 34615 Customary 1 - 90 mils 1.75″ - 1.95″ (44.45 - 49.53 mm) Semi-Con Removal
BP A 35250 Customary 1 - 90 mils 0.38″ - 0.75″ (9.65 - 19.05 mm) Semi-Con Removal
BP 2AK R35330 Customary 1 - 90 mils 1.95″ - 2.00″ (49.53 - 50.80 mm) Semi-Con Removal
BP 1AR 36401 Customary 50 - 140 mils 0.75″ - 1.10″ (19.05 - 27.94 mm) Soft Jacket Removal
BP 2AR 36402 Customary 50 - 140 mils 1.10″ - 1.30″ (27.94 - 33.02 mm) Soft Jacket Removal
BP AR 37760 Customary 50 - 140 mils 0.38″ - 0.75″ (9.65 - 19.05 mm) Soft Jacket Removal
BP 3A 38445 Customary 1 - 90 mils 2.165″ - 2.63″ (55.0 - 66.80 mm) Semi-Con Removal
BP 1A-M 42220 Metric 0.0254 - 2.30 mm 0.75″ - 1.10″ (19.05 - 27.94 mm) Semi-Con Removal
BP 1AH-M 42335 Metric 0.0254 - 2.30 mm 1.10″ - 1.30″ (27.94 - 33.02 mm) Semi-Con Removal
BP 2A-M 42336 Metric 0.0254 - 2.30 mm 1.25″ - 1.75″ (31.75 - 44.45 mm) Semi-Con Removal
