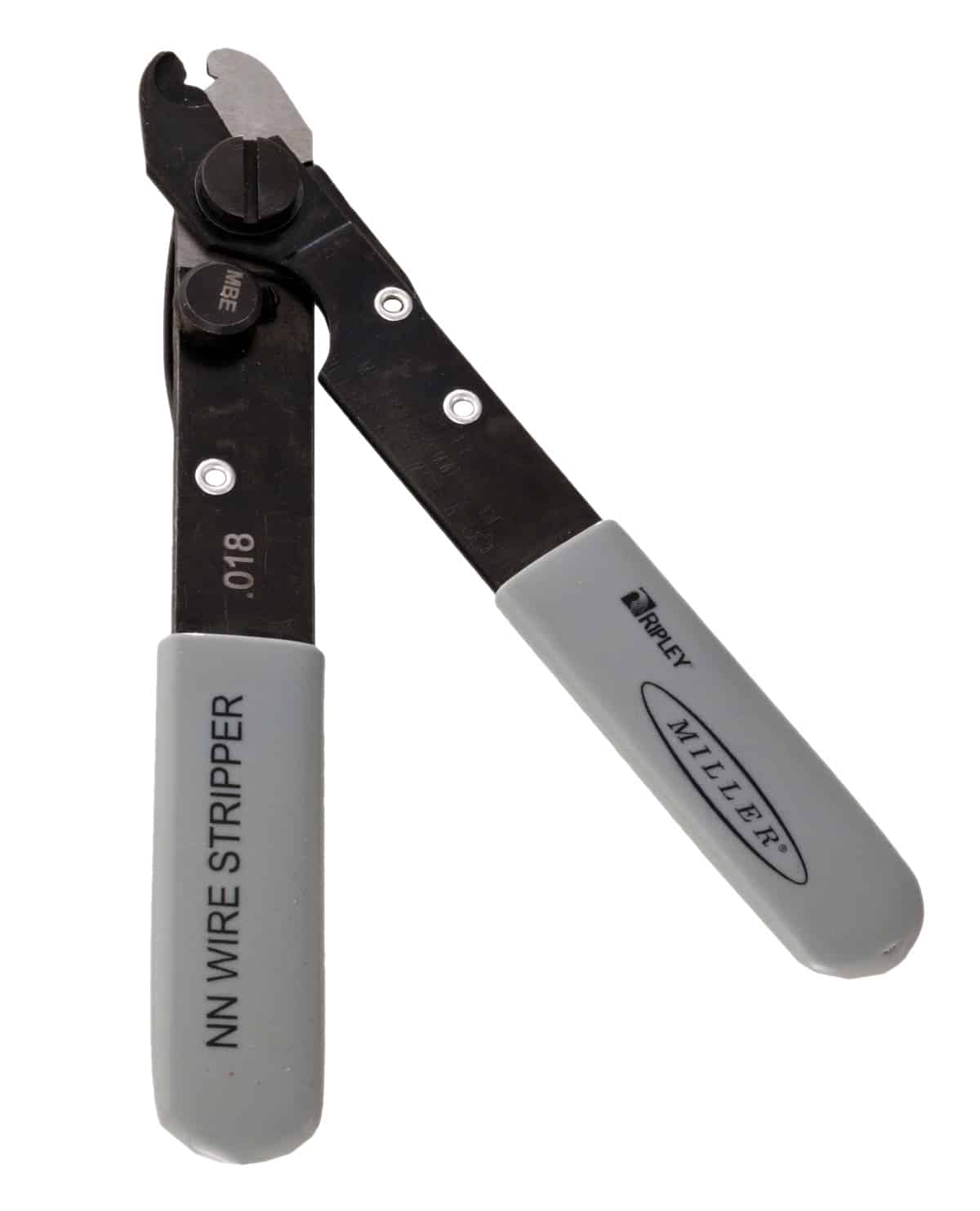

NN Series

Non-Nicking Wire Strippers

Designed for premier precision.

See all distributors

Part No: Refer to Chart

Share this product

Downloads

Overview

  • Premier precision tool for stripping insulation from solid or stranded wire without nicking the conductor
  • Compatible with nominal conductor diameters from 0.005″ to 0.044″ (0.127 to 1.18 mm) & features tool hole diameters from 0.008″ to 0.054″ (0.20 to 1.37 mm)
  • Handles identify the hole diameter of each tool

Specifications

Handles Ergonomic, Cushioned Non-Slip Grips
Length 5.375″ (136.5 mm)
Weight 2.5 oz (71 g)

Comparison Chart

MODEL PART NOMINAL TOOL HOLE DIAMETER CONDUCTOR SIZE WIRE SIZE
NN044W 86215 0.044″ 0.040″ (1.024 mm) 0.035″ (0.889 mm) 18 AWG Solid 20 AWG Stranded
NN054W 86217 0.054″ 0.044″ (1.118 mm) 18 AWG Stranded
NN037W 86213 0.037″ 0.032″ (0.813 mm) 0.035″ (0.889 mm) 20 AWG Solid 20 AWG Stranded
NN034W 86211 0.034″ 0.032″ (0.813 mm) 0.028″ (0.711 mm) 20 AWG Solid 20 AWG Stranded
NN031W 86209 0.031″ 0.025″ (0.643 mm) 0.028″ (0.711 mm) 22 AWG Solid 22 AWG Stranded
NN028W 86206 0.028″ 0.025″ (0.643 mm) 0.022″ (0.559 mm) 22 AWG Solid 24 AWG Stranded
NN025W 86204 0.025″ 0.020″ (0.511 mm) 0.022″ (0.559 mm) 24 AWG Solid 24 AWG Stranded
NN023W 86202 0.023″ 0.020″ (0.511 mm) 0.017″ (0.432 mm) 24 AWG Solid 26 AWG Stranded
NN021W 86200 0.021″ 0.016″ (0.404 mm) 0.017″ (0.432 mm) 26 AWG Solid 26 AWG Stranded
NN018W 86198 0.018″ 0.016″ (0.404 mm) 0.014″ (0.356 mm) 26 AWG Solid 28 AWG Stranded
NN016W 86196 0.016″ 0.013″ (0.320 mm) 0.014″ (0.356 mm) 0.011″ (0.279 mm) 28 AWG Solid 28 AWG Stranded 30 AWG Stranded
NN014W 86194 0.014″ 0.013″ (0.320 mm) 0.010″ (0.254 mm) 0.011″ (0.279 mm) 28 AWG Solid 30 AWG Solid 30 AWG Stranded
NN012W 86192 0.012″ 0.010″ (0.254 mm) 0.008″ (0.203 mm) 0.009″ (0.229 mm) 30 AWG Solid 32 AWG Solid 32 AWG Stranded
NN010W 86190 0.010″ 0.008″ (0.203 mm) 0.009″ (0.229 mm) 0.006″ (0.160 mm) 0.007″ (0.178 mm) 32 AWG Solid 32 AWG Stranded 34 AWG Solid 34 AWG Stranded
NN008W 86188 0.008″ 0.005″ (0.127 mm) 0.006″ (0.152 mm) 34 AWG Solid 36 AWG Solid 36 AWG Stranded
