FOSJST/DB (MB15-7100)

Direct Burial & MDU Fiber Optic Jacket Slitter

A compact, one-step fiber jacket or tube slitter for jacketed or loose tube direct burial and MDU fiber optic cables

See all distributors

Part No: MB15-7100

Share this product

Downloads

Overview

An updated FOJST specially designed for direct buried installations

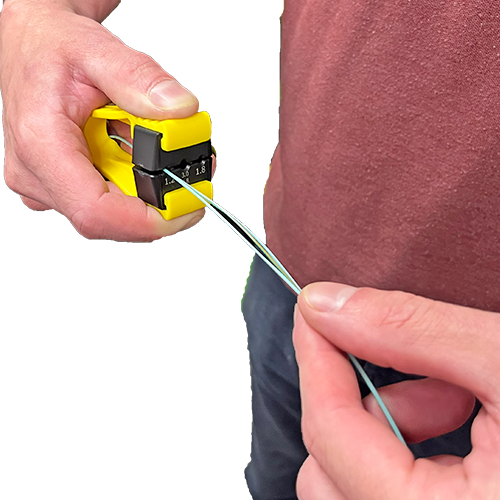

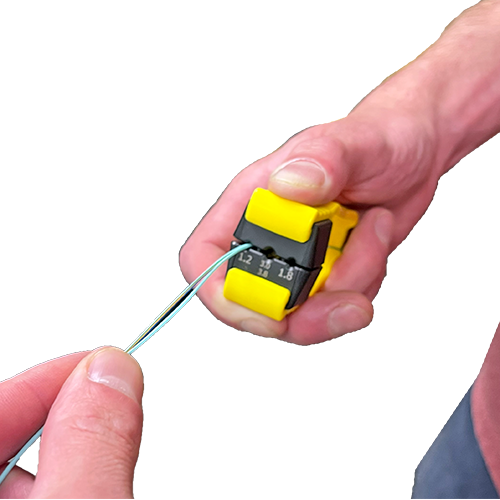

  • Compact, one-step tool slits direct burial fiber jacket or buffer tubes in two places 180° apart without nicking or damaging the fiber

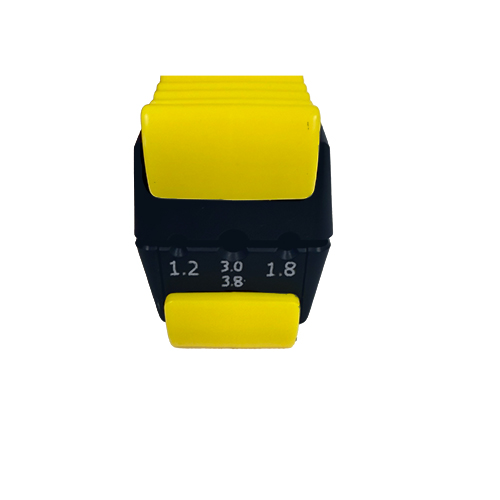

  • Pre-set blades for 1.2 & 1.8mm OD cables and a central channel designed for 3.0 – 3.8mm OD cables
  • A factory-set & fixed blade cassette features three slitting channels to accommodate three jacket diameters
  • Indicator marks specify the exact location of the blade to ensure the accurate cable length is prepared consistently every time

Specifications

Dimensions 2.875" x .875" x 2.125" (73.03 x 22.23 x 53.98 mm)
Weight 0.94 oz (26.7 g)
Replacement Slitting Cassettes MB15-7510 (2-piece replacement set)
