MV Underground Tool Kit

Complete MV Underground Cable Prep Kit

Bringing the best of Ripley’s adjustable tools together in one rugged kit for 15-35 kV cable technicians

See all distributors

Part No: See Table

Share this product

Downloads

Overview

New from Ripley – Medium Voltage Underground Tool Kits capable of performing slit, ring, and spiral cuts on 15-35 kV cable diameters from 0.39″ (10mm) to 2.36″ (60mm). Available with either a URD lightweight canvas bag or hard case and custom foam to protect valuable tools, these kits ensure cable technicians are never caught unprepared in the field.

  • Promote safety on the job site by equipping teams with tools to eliminate exposed blades
  • Compatible with various insulated materials such as PE, XLPE, PVC, EPR, silicon rubber, EPDM and TGGT
  • Range of adjustable tools to tackle various cable sizes and jacket thicknesses
  • Replacement blades included
  • Customization possible for certain tools within the kit – ie switching inch to metric or changing plier types, contact Ripley for more detail

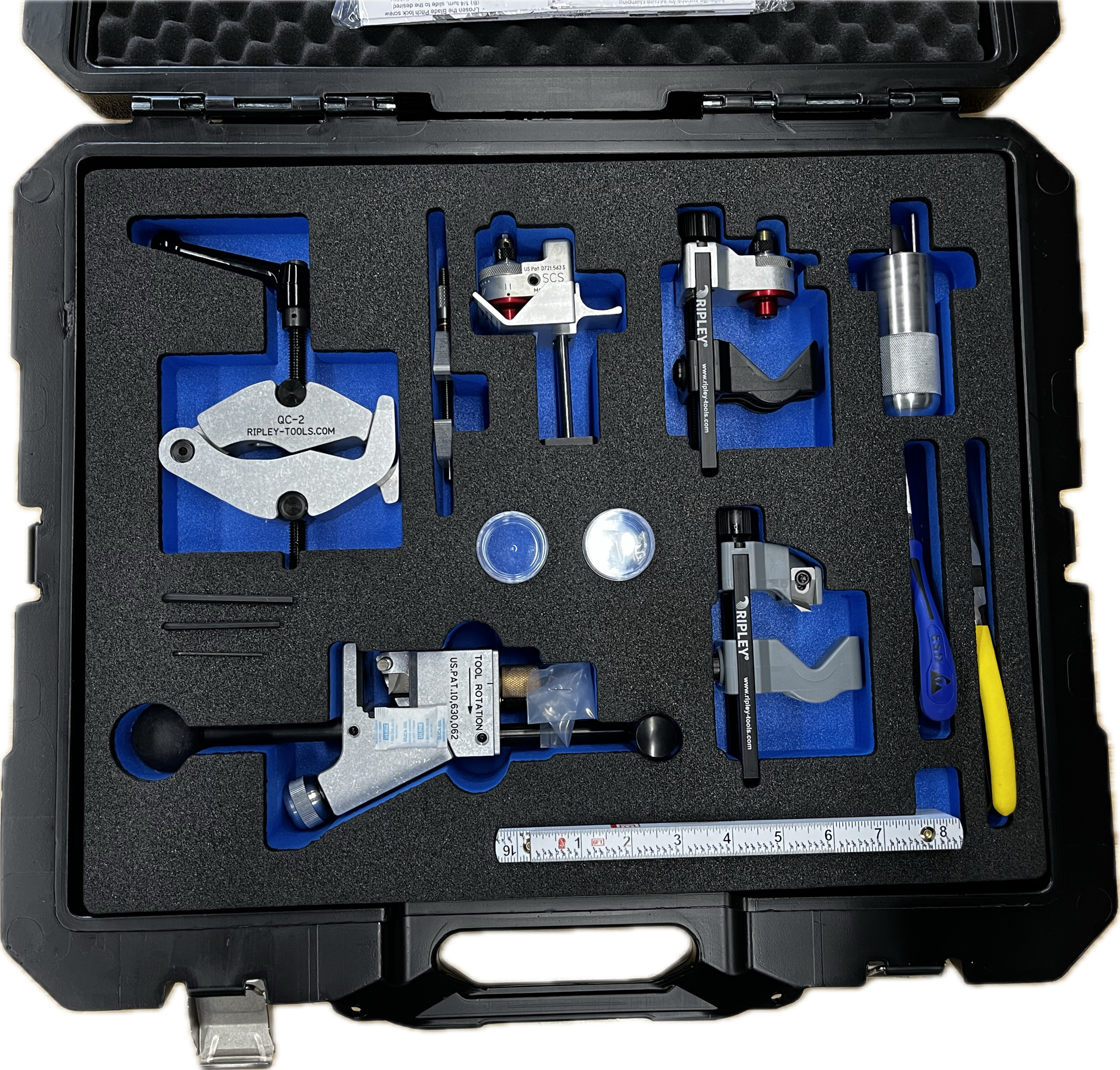

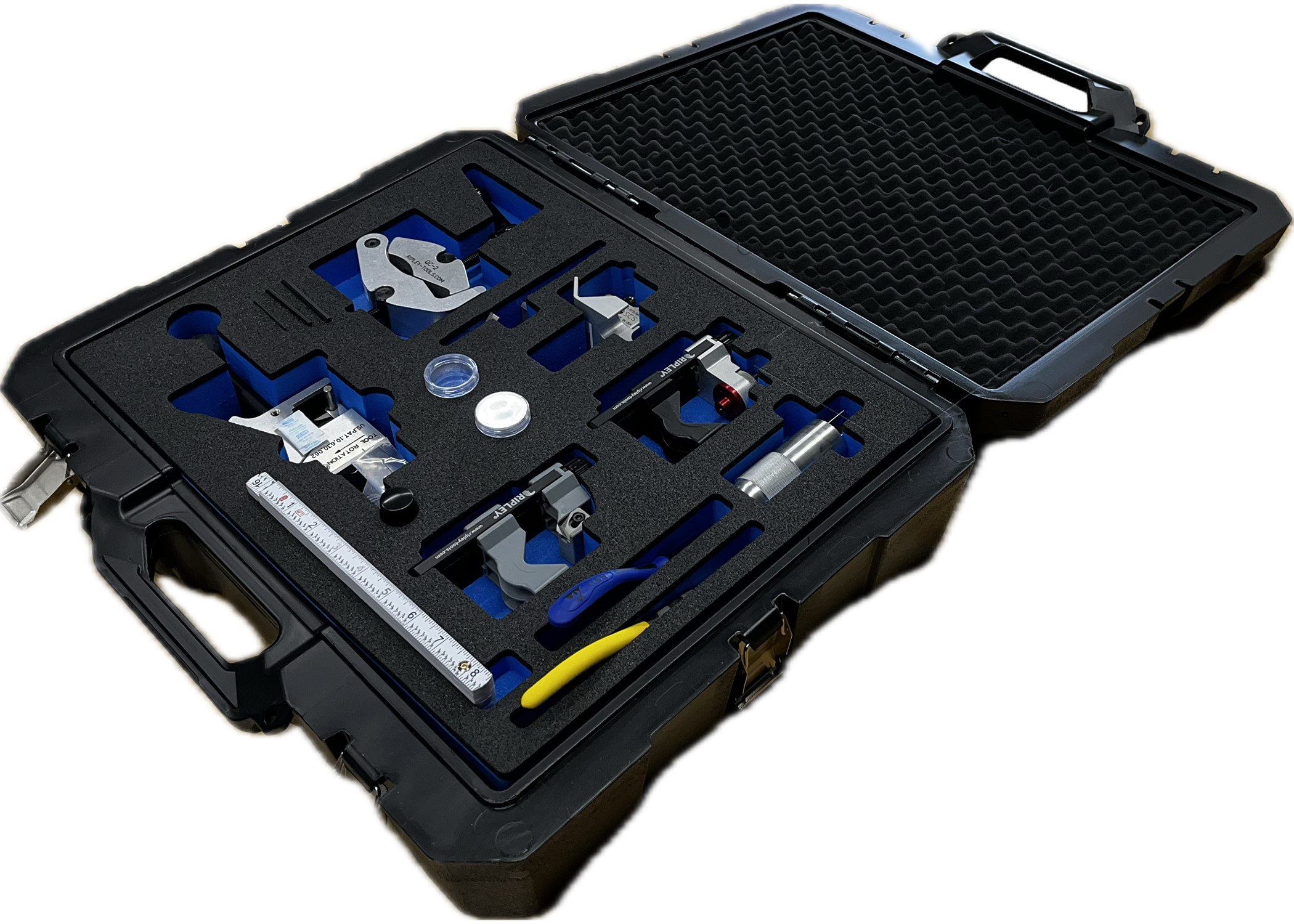

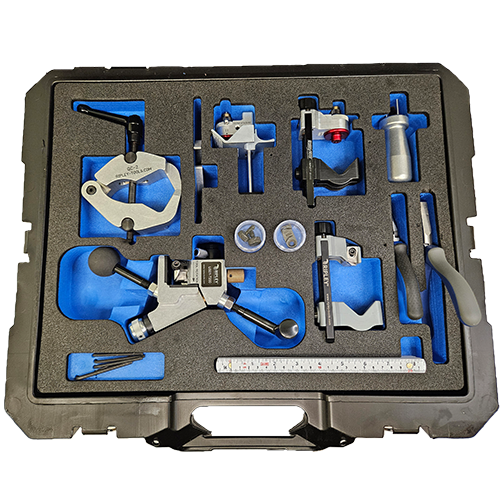

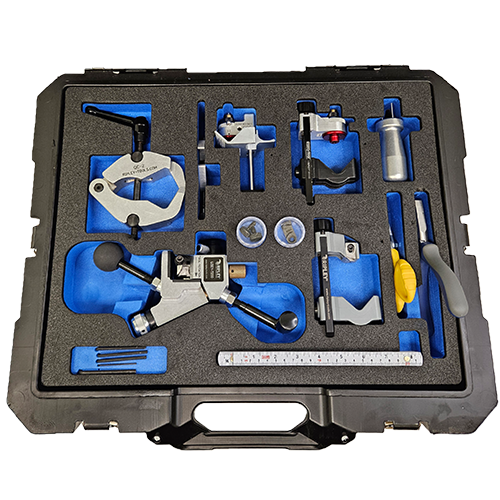

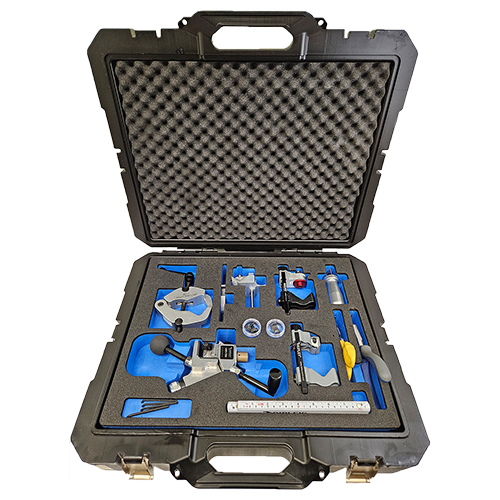

Kit Items

Included items:-

Specifications

Length 24″ (61 cm)
Width 24″ (61 cm)
Height 8" (20.3 cm)
Weight 15 lb (6.8 kg)

Comparison Chart

MODEL PART # CONTENTS
MV Underground Kit with Hard Case UA01-7069 US15-7001, US15-7020 jacket lifter, US01-7200 adjustable cable stripper, US10-7000 chamfer, UA01-7201 ruler, UA04-7000 flat nose pliers, MA04-7300 diagonal cutters, 43970 QC-2 Clamp, 43965 SCS-C Clamp & 43630 SCS
MV Underground Kit incl Kevlar Shears with Hard Case UA01-7066 US15-7001, US15-7020 jacket lifter, US01-7200 adjustable cable stripper, US10-7000 chamfer, UA01-7201 ruler, UA04-7000 flat nose pliers, 80671 KS-1 shears, 43970 QC-2 Clamp, 43965 SCS-C Clamp & 43630 SCS
MV Underground Kit with URD Bag UA01-7081 US15-7001, US15-7020 jacket lifter, US01-7200 adjustable cable stripper, US10-7000 chamfer, UA01-7201 ruler, UA04-7000 flat nose pliers, MA04-7300 diagonal cutters, 43970 QC-2 Clamp, 43965 SCS-C Clamp & 43630 SCS
MV Underground Kit with URD Bag incl Kevlar Shears UA01-7082 US15-7001, US15-7020 jacket lifter, US01-7200 adjustable cable stripper, US10-7000 chamfer, UA01-7201 ruler, UA04-7000 flat nose pliers, 80671 KS-1 shears, 43970 QC-2 Clamp, 43965 SCS-C Clamp & 43630 SCS
