Smart Aligner FX

Compact Antenna Alignment Tool

Ripley’s purpose-built Antenna Alignment Tool for cell, WISP, and other directional antennas

See all distributors

Part No: WA20-7500

Share this product

Downloads

Overview

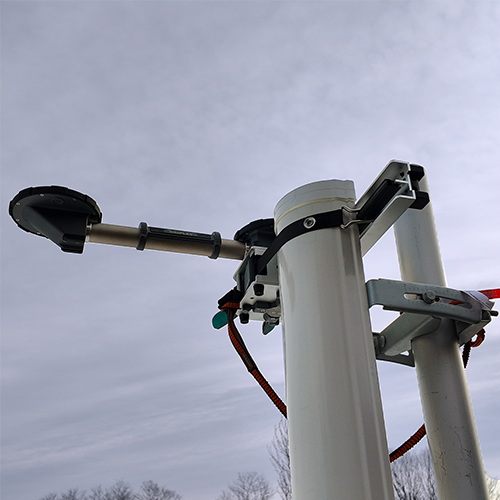

The brand new alignment solution for any antenna – cell, fixed wireless, WISP and more!

  • Reduced weight vs competitive products – total tool weight of 2.2 lbs
  • Intuitive design for simplified antenna alignment

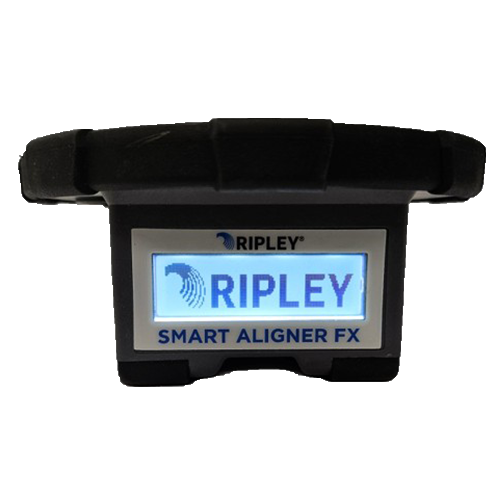

  • Easy-to-use interface and mobile application for site reporting
  • IP-65 rated for rugged deployment in all conditions
  • Precise azimuth and tilt & roll readings
  • Free Smart Aligner mobile app (iOS & Android) for building reports, including pictures
  • Field calibration routine – date of calibration on report

Specifications

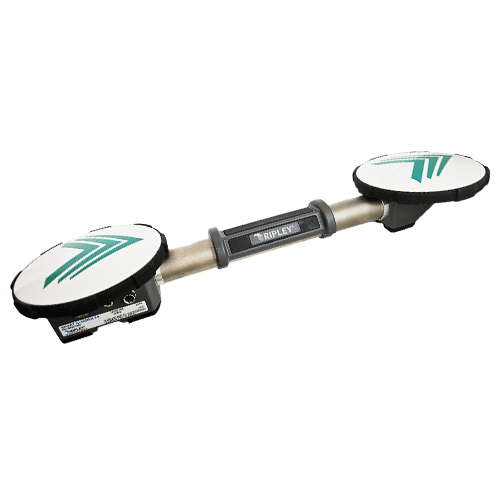

Description Antenna Alignment Tool
Dimensions (Tool) 19.75″ x 5.5″ x 2.75″ (50.2 cm x 14.0 cm x 7.0 cm)

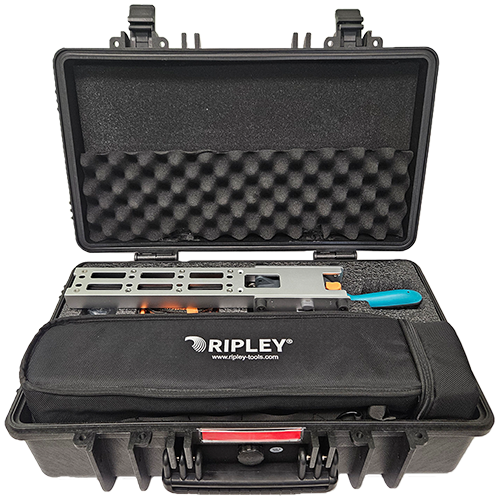

Dimensions (Case) 22" x 13.5" x 8" (55.8 cm x 34.3 cm x 20.3 cm)
Weight 2.2 lb (0.99 kg)
