SDT Series

Single Drop Cable Trimmer

One-step preparation tool.

See all distributors

Part No: Refer to Chart

Share this product

Downloads

Overview

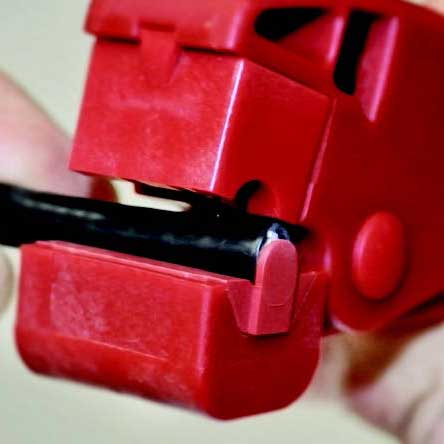

  • Color-coded one-step preparation tool exposes the drop cable center conductor by 5/16″ (7.6 mm) & removes 1/4″ (6.35 mm) of jacket

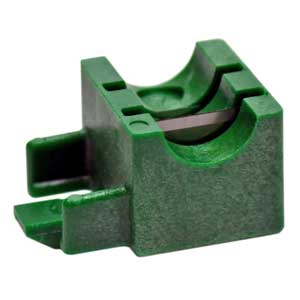

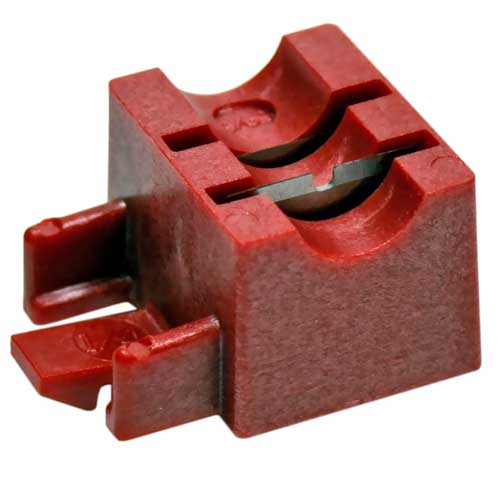

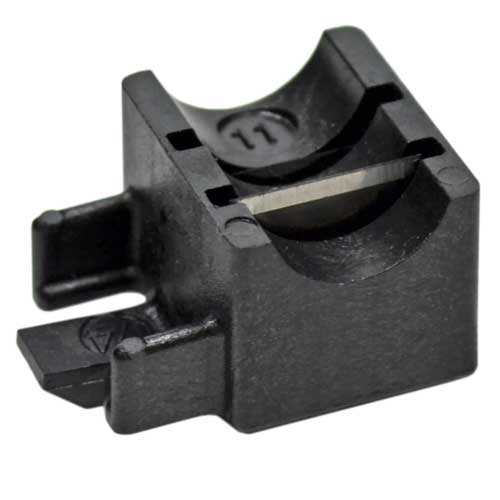

  • Unique cassette ejector design provides a quick replacement of easily identifiable, color-coded blade cassettes & high-quality steel blades will perform 3500+ preparations under normal use
  • Durable, impact resistant & lightweight polymer construction & ergonomic, compact design for easy handling
  • No adjustments or additional tools required
  • Includes one installed blade cassette & one additional blade cassette

Compatibility

Cable Access End
Conductor Exposure 5/16ʺ (7.93 mm)
Jacket Removal Length 1/4ʺ (6.35 mm)

Specifications

Material Impact-Resistant Polymer
Patent Number(s) U.S. Patent No. 6,128,976 & 6,253,641
Length 4.6″ (119 mm)
Weight 1.6 oz (45 g)

Comparison Chart

MODEL PART # GTIN CABLE TYPE STRIP STOP DE-BURR TOOL CASSETTE COLOR REPLACEMENT BLADE CASSETTE
SDT 596-250SS 36700-1 59/6 N48 Built-In None Red 35241
SDT 596-250 36700 856848006694 59/6 N48 None None Red 35241
SDT 7-250 36701 7 None None Green 35242

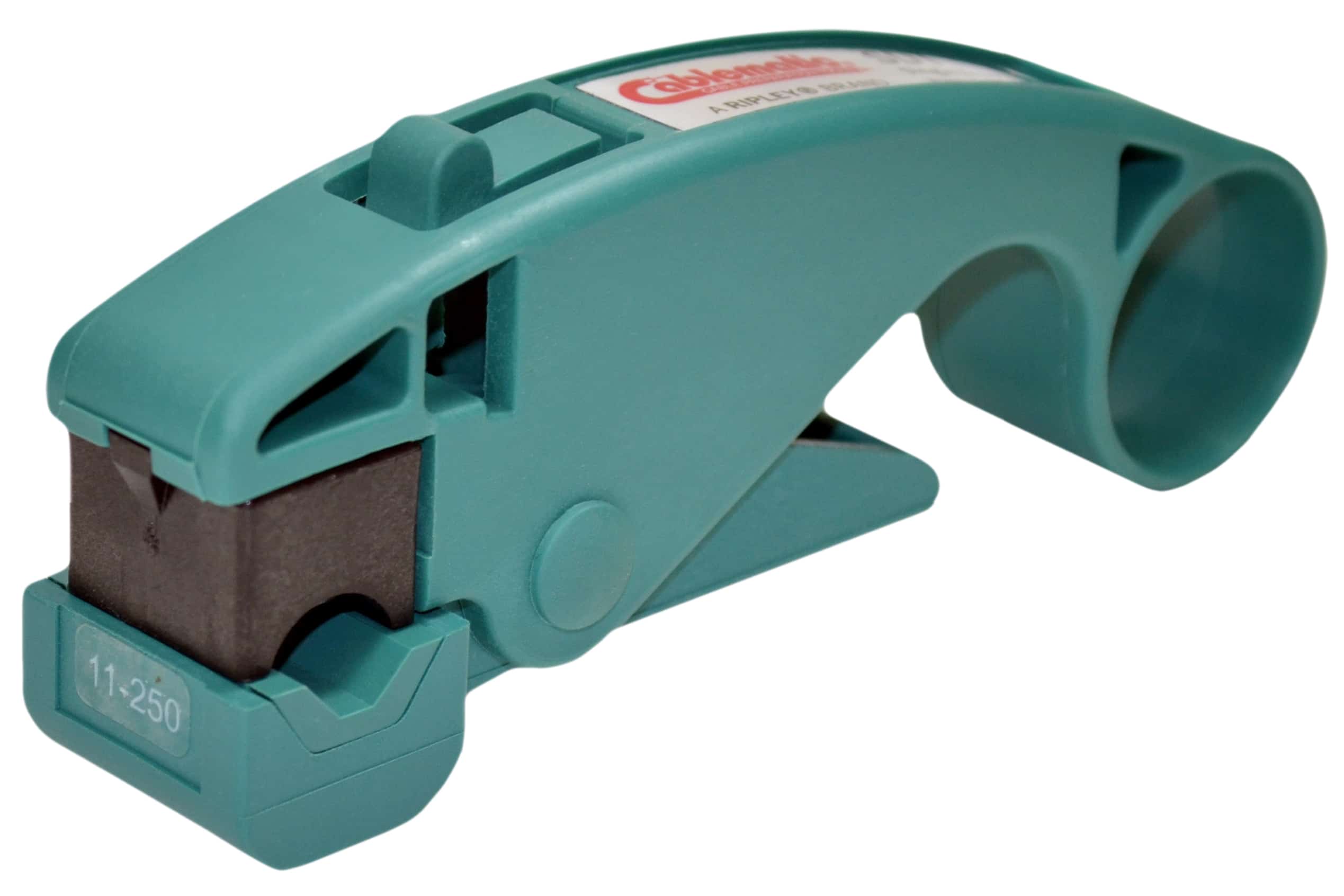

SDT 11-250 36702 11 None None Black 35243
SDT Coax 9 36733 9 None None Green 36739
SDT-TXFF-250 37460 TX-10-15 F50 None None Not Replaceable
SDT 240-50 38651 50 Ohm 240 None None 38661
SDT 300-50 38652 50 Ohm 300 None None 38662
SDT 400-50 38653 50 Ohm 400 None Built-In 38663
SDT 500-50 38654 50 Ohm 500 None Built-In 38664
SDT 600-50 38655 50 Ohm 600 None Built-In 38665
SDT EUR 42006 59/6 9 N48 None None Orange 42004
