UDT Series

Universal Drop Cable Trimmer

Compact, one-step cable preparation tool.

See all distributors

QuickShip Available QuickShip Available

Quickship Available: Many of our products can ship out to your local authorized distributor within 48 hours. If you see a QuickShip icon next to an item and you need it FAST, let your distributor know and we will expedite it.

Share this product

Downloads

Overview

  • Compact, one-step cable preparation tool for all 59, 6, N48, 7 & 11 drop cable constructions
  • Features interchangeable blades to expose the conductor 5/16″ (7.93 mm) & remove the jacket 1/4″ (6.35 mm), as well as storage for two additional blades within the tool body

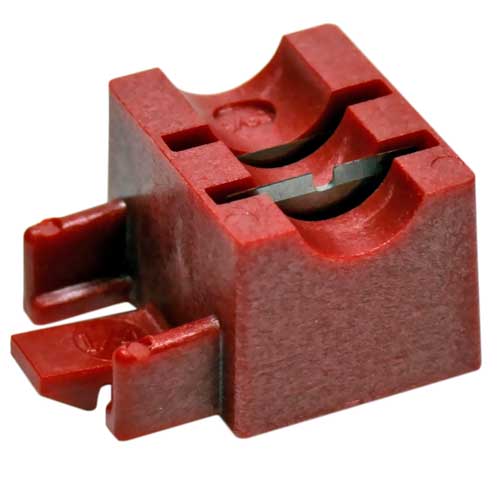

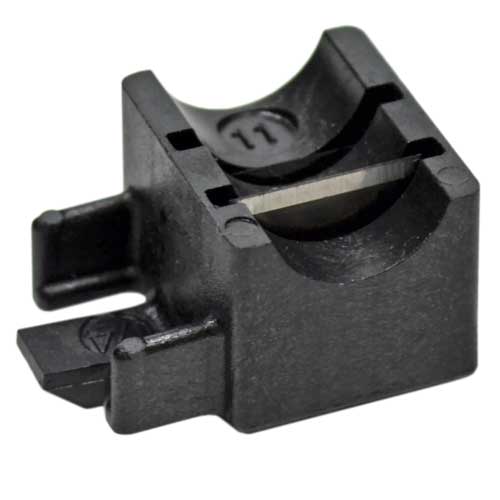

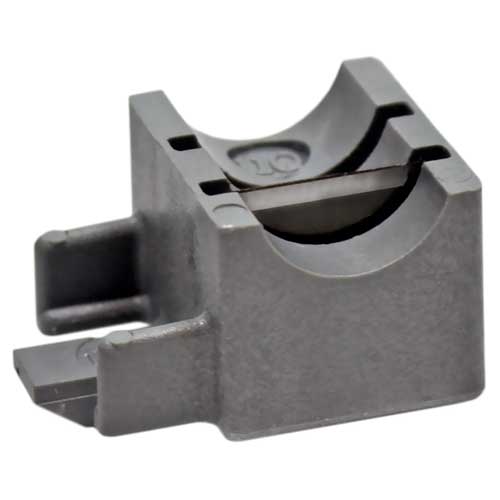

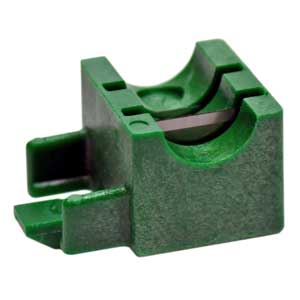

  • Blade cassettes are color-coded for easy identification
  • Durable polymer construction & equipped with built-in strip stops

Compatibility

Cable Access Mid-Span, End
Conductor Exposure 5/16ʺ (7.93 mm)
Jacket Removal Length 1/4ʺ (6.35 mm)

Specifications

Material Impact-Resistant Polymer
Patent Number(s) U.S. Patent No. 5,716,132
Length 5.5″ (139.7 mm)
Weight 4.5 oz (127 g)

Comparison Chart

MODEL PART# CABLE TYPE STRIP STOP REPLACEMENT BLADE CASSETTE
UDT596711-250 35221 59/6
7
11
11Q
N48		 Built-In 35241
35243
35244
UDT59611-250 35220 QuickShip Available
Quickship Available: Many of our products can ship out to your local authorized distributor within 48 hours. If you see a QuickShip icon next to an item and you need it FAST, let your distributor know and we will expedite it.
 		59/6
11
11Q
N48		 Built-In 35241
35242
35243
35244
UDT711-250 35238 7
11
11Q
N48		 Built-In 35242
35243
35244
