Cable Jointers Kit

Complete kit for termination prep on MV / HV cable

Bringing the best of Ripley’s adjustable tools together in one rugged kit for installing and jointing 10-35 kV cable

Part No: See Table

Share this product

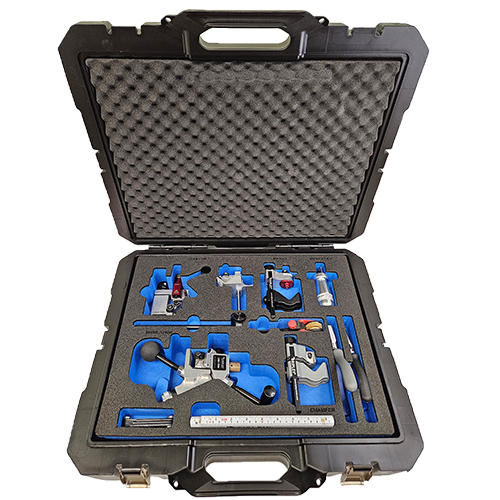

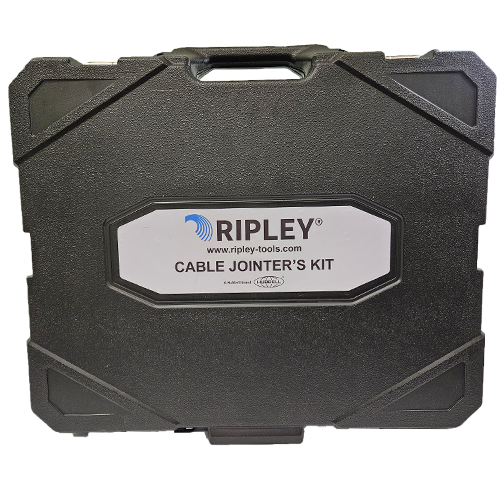

Ripley’s Cable Jointer’s Kits are the industry’s best tools in one place, capable of removing jacket, shaving or scoring semi-con and removing and chamfering insulation on 10-35 kV cable diameters from 0.39″ (10mm) to 2.36″ (60mm). Each case comes with a rugged case and precision-cut foam to protect valuable tools, these kits ensure cable technicians are never caught unprepared in the field.

  • Promote safety on the job site by equipping teams with tools to eliminate exposed blades
  • Compatible with various insulated materials such as PE, XLPE, PVC, EPR, silicon rubber, EPDM and TGGT
  • Range of adjustable tools to tackle various cable sizes and jacket thicknesses
  • Comes equipped with hex key set for all spare blade replacements
  • Replacement blades included
  • Customization possible for certain tools within the kit – ie switching metric to inch or changing plier types, contact Ripley for more detail
  • Imperial version available, see table below
Length 24″ (61 cm)
Width 24″ (61 cm)
Height 8" (20.3 cm)
Weight 15 lb (6.8 kg)
MODEL PART # CONTENTS

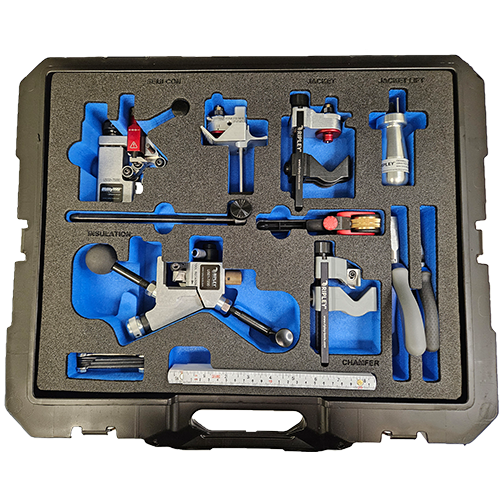

Cable Jointer's Kit with Hard Case UA01-7085 US15-7000 jacket scorer, US15-7020 jacket lifter, US02-7005 semi-con shaver, 43625 semi-con scorer, US01-7205 adjustable cable stripper w/ stop, US10-7000 chamfer, UA01-7201 ruler, UA04-7000 flat nose pliers, MA04-7301 needle nose pliers, US14-7000 ratcheting slitter & hex key set
Jointer's kit with Imperial Tools and KS-1 UA01-7092 US15-7001 jacket scorer, US15-7020 jacket lifter, US02-7005 semi-con shaver, 43630 semi-con scorer, US01-7205 adjustable cable stripper w/ stop, US10-7000 chamfer, UA01-7201 ruler, UA04-7000 flat nose pliers, 80671 KS-1 shears, US14-7000 ratcheting slitter & hex key set
